Name: 3D Geonet Erosion Control Geosynthetic Mat
Availability: InStock

Erosion Control Mat / 3D Geonet | Turf Reinforcement & Geosynthetic Protection Mat

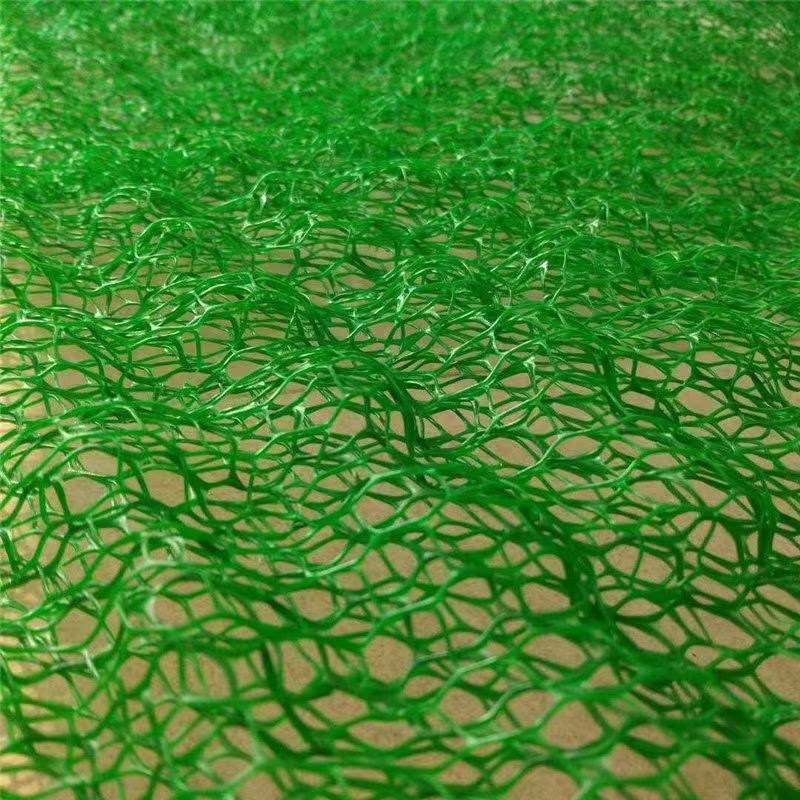

NK's Erosion Control Mat is constructed from high-strength resin, forming a multi-layered, concave-convex three-dimensional grid. The mesh size, number of layers, and overall thickness can be customized. A small amount of anti-aging and UV-resistant additives are added to ensure the material's durability in outdoor environments.

Manufactured using a fully automated three-dimensional grid forming production line through extrusion, stretching, and welding processes, each batch undergoes testing for tensile strength, aging resistance, and mesh stability, strictly complying with national standards for ecological protection of geosynthetics.

NK's Erosion Control Mat is not only used in key domestic projects such as highway slopes and mine greening, but is also exported to 19 countries and regions across Southeast Asia, the Middle East, and South America, earning widespread recognition from project owners and environmental authorities.

Types & Parameters

Parameter	Value Range	Notes
Specification	EM2、EM3、EM4、EM5	Common specifications: EM3、EM5
Width	1m – 3m	Customizable, commonly used 3m
Length	5m – 30m per roll	Depends on thickness
Thickness	≥ 10-16mm	Compliant with GRI/ASTM standards
Mass per unit area	≥ 220 - 430g/㎡	High durability
Longitudinal and transverse tensile strength	≥0.8 - 3.2 KN/m	Enhanced UV and anti-aging properties

Advantages & Strengths

Three-Dimensional Soil Fixation:

The three-dimensional grid structure locks in the topsoil, forming a "soil-grid-grass" composite stabilization system to prevent soil loss along the slope.

Ecological Compatibility:

The interior of the grid can be filled with soil and planted with grass seeds, providing space for plant root growth and promoting slope greening, combining engineering protection with ecological restoration.

Excellent Erosion Resistance:

The three-dimensional structure disperses the force of rainwater, reducing erosion caused by surface runoff, making it particularly suitable for slope protection in rainy areas.

Root Anchorage Enhancement:

Plant roots can penetrate the mesh and intertwine with the soil, leveraging the mesh's mechanical anchoring to enhance root anchorage.

Convenient Construction:

The lightweight and flexible material can be quickly installed on slopes of varying gradients (gentle or steep), eliminating the need for complex equipment and shortening construction times.

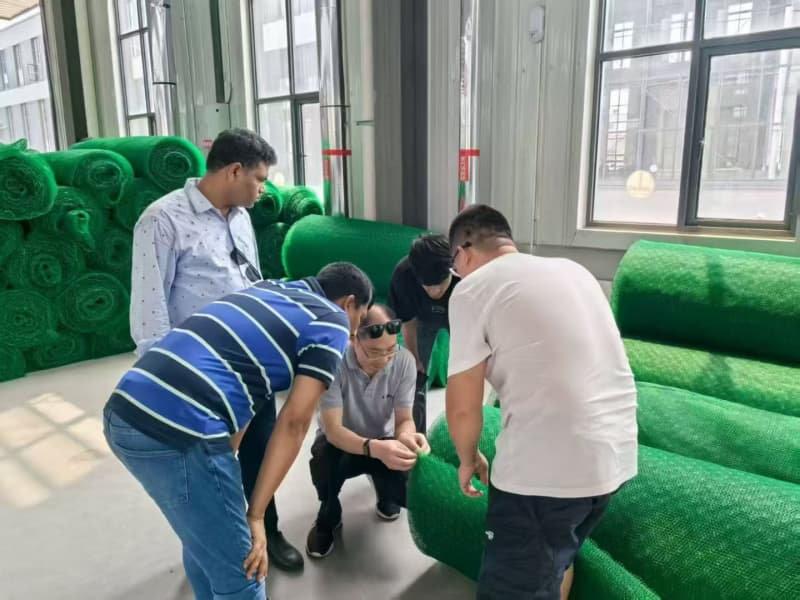

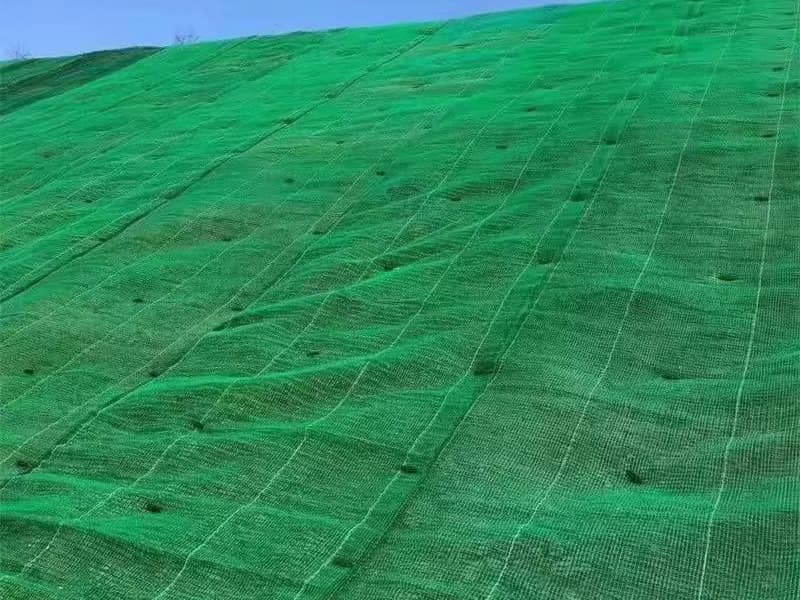

Erosion control mat for slope protection

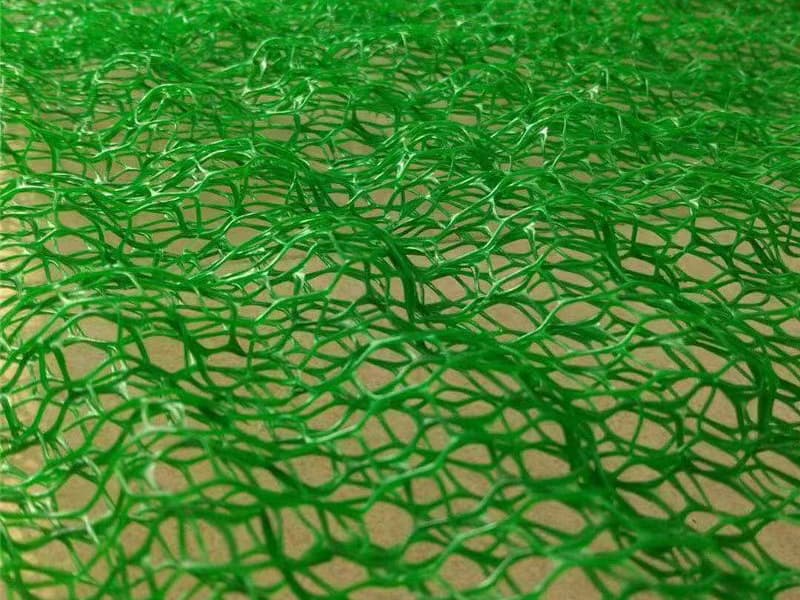

Erosion control blanket for landscaping projects

Popular Applications

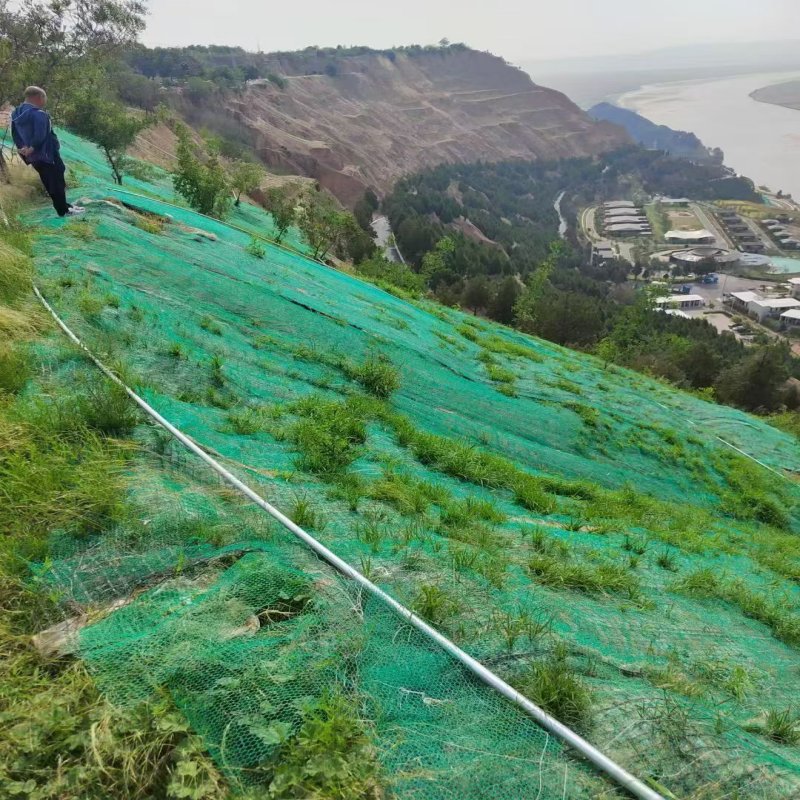

Highway/Railway Slope Protection:

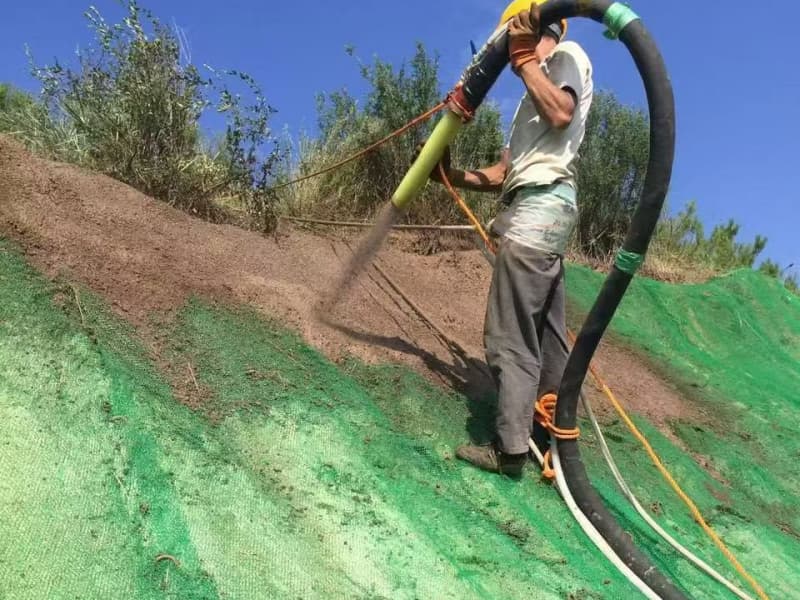

Use EM4 or EM3 layers of Erosion Control Mat: Lay on the surface of the roadbed slope and spray with grass seeds to create a protective green slope to prevent slope collapse.

Mine Reclamation:

Use EM4 or EM5 layers of Erosion Control Mat: Cover the exposed rock surface of the mine, fill with improved soil, and then seed to accelerate mine ecological recovery.

River Bank Slope Protection:

EM3 or EM4 layers of Erosion Control Mat are applied to the river bank slopes, combined with aquatic plant planting, to prevent erosion and improve the water ecology.

Municipal Green Slope:

EM3 or EM2 layers of Erosion Control Mat are applied to gently sloping areas in urban parks and road green belts to improve plant survival and slope stability.
